Polishing | DMS Components

Carbide Burs - 1/4" Burs - 1/8 x 1-1/2" Long Steel Shank

Please select your desired shape, diameter, and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*1/8" x 1-1/2" Long Steel Shank. “EC” denotes end cutting burCUT SELECTIONThe cut or flute pattern is an important decision when using carbide burs. This is determined by the hardness of the material being removed and the finish required. Below are illustrations of the basic patterns that are available and the advantages of each.#1 Standard CutA general purpose pattern to be used on cast iron, steel and other ferrous metals.#4 Double CutFor use on heat treated and tough alloy steel. Produces a smaller chip and minimizes slivers in stringy material. Enables excellent control.#8 Chipbreaker CutThis pattern reduces chip size allowing an improvement in control.

Carbide Burs - 1/4" Shank

Please select your desired shape, diameter, and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library The cut or flute pattern is an important decision when using carbide burs. This is determined by the hardness of the material being removed and the finish required. Below are illustrations of the basic patterns that are available and the advantages of each.All 1/4" cutting diameter burs are solid & 2" overall.All others have solid carbide heads brazed to 2" long steel shanksSizes marked with (*) are available on a 6" long steel shank as well. To order add “L6” to part number (example: SA-3-4L6).

Carbide Burs - 3/32" Miniatures

Please select your desired shape, diameter, and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryCUT SELECTIONThe cut or flute pattern is an important decision when using carbide burs. This is determined by the hardness of the material being removed and the finish required. Below are illustrations of the basic patterns that are available and the advantages of each.#1 Standard CutA general purpose pattern to be used on cast iron, steel and other ferrous metals.#4 Double CutFor use on heat treated and tough alloy steel. Produces a smaller chip and minimizes slivers in stringy material. Enables excellent control.

Carbide Burs - Aluminum Cut

Please select your desired size, shank and shape to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryFor cutting softer non-ferrous metals and non-metallic materials such as: aluminum, magnesium alloys, plastics, hard rubber & zinc alloy.

Carbide Burs - Miniature 1/8 x 1-1/2"

Please select your desired shape, diameter, and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*1/8" x 1-1/2" OAL Solid Carbide. “EC” denotes end cutting burCUT SELECTIONThe cut or flute pattern is an important decision when using carbide burs. This is determined by the hardness of the material being removed and the finish required. Below are illustrations of the basic patterns that are available and the advantages of each.#1 Standard CutA general purpose pattern to be used on cast iron, steel and other ferrous metals.#4 Double CutFor use on heat treated and tough alloy steel. Produces a smaller chip and minimizes slivers in stringy material. Enables excellent control.

Carbide Burs - Miniature 1/8 x 3"

Please select your desired shape, diameter, and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*1/8" x 3" OAL Solid Carbide. “EC” denotes end cutting burCUT SELECTIONThe cut or flute pattern is an important decision when using carbide burs. This is determined by the hardness of the material being removed and the finish required. Below are illustrations of the basic patterns that are available and the advantages of each.#1 Standard CutA general purpose pattern to be used on cast iron, steel and other ferrous metals.#4 Double CutFor use on heat treated and tough alloy steel. Produces a smaller chip and minimizes slivers in stringy material. Enables excellent control.

Carbide Burs - S.S. White Mini Carbide Dental Burs (HP)

Ceramic Stone Holders - Handheld

Please select your desired size, grit, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.Specially designed holders for hand use and profilers. Conventional and detail polishing holder designs are available. All holders are made of material that will not damage mold & die surfaces.

Ceramic Stone Holders - Profiler

Coated Abrasives - Aluminum Oxide Laminated Discs

Please select your desired grit, size, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryType 2A Aluminum oxide grainGeneral purpose, long lifeEasy disc changes by twisting off of backing padFor ferrous and/or non-ferrous metals Type 3APremium aluminum oxide grain with grinding aidCooling agents for cool cutting & longer lifeFast stock removalEasy disc changes by twisting off of backing padF or ferrous & non-ferrous metals. Stainless steel, high tensile steel or titanium Sait-lok™ All metal attachment on disc ensures a secure fit to the backing pad. Sait-lok-R™ Nylon screw threaded hub for easy mounting to the backing pad.

Coated Abrasives - Cloth Bench Rolls

Backing Pads for Laminated Discs - SaitLok_R - Image

Coated Abrasives - Coating Pads for Laminated Discs (Sait-lok-R)

Backing Pads for Laminated Discs - SaitLok - Image

Coated Abrasives - Coating Pads for Laminated Discs (Sait-lok)

Please select your desired grit, size, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibrarySait-lok™For use with Sait-Lok™ laminated discs. Disc twists into metal hub in backing pad for fast/easy changes. 1/4 shanks

Coated Abrasives - PSA Disc Holders

Please select your desired grit, size, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryStrong resin over resin bond construction is resistant to heat & moisture. Premium zirconium grain Egyptian cotton cloth backing. Closed coat structure. Hot melt adhesive back allows for quick change and less downtime.

Coated Abrasives - PSA Discs

Please select your desired grit, size, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryStrong resin over resin bond construction is resistant to heat & moisture. Premium zirconium grain Egyptian cotton cloth backing. Closed coat structure. Hot melt adhesive back allows for quick change and less downtime.

Coated Abrasives - PSA Strips

Please select your desired grit, size, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibrarySame material as PSA discs, but supplied in 1” x 11 strips. 50/pkg Aluminum oxide resin bonded cloth with PSA back.

Coated Abrasives - Zirconium Laminated Discs

Please select your desired grit, size, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryType Z Premium zirconium grainVery fast stock removalEasy disc changes by twisting to unlock backing padFor use on stainless steel, high tensile alloys, ferrous or non-ferrous metals (such as iron, steel, welds, etc). Type 3ZPremium zirconium grain with grinding aidCooling agents for cool cutting & longer lifeFast stock removal, no discolorationEasy disc changes by twisting to unlock backing padFor use on stainless steel, high tensile alloys, ferrous metals

Cut-Off Wheels & Mandrels - High Speed

Please select your desired size, thickness, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD LibraryVitrified binded for quick, efficient cutting and blending. Excellent for cutting slots, ribs and all types of tool steel. Structured to be cool cutting to minimize damage to parts being cut. Always use approved machine guards/eye protection when cutting or grinding with cut-off wheels.

Cut-Off Wheels & Mandrels - Mandrels with Screws

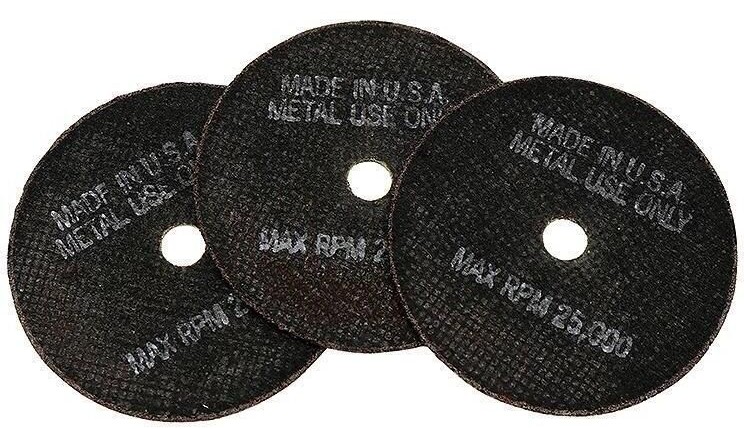

Cut-Off Wheels & Mandrels - Reinforced T-1

Please select your desired size, thickness, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library* Max RPM for 2" is 30,550; Max RPM for 3" is 25,000Double reinforced for maximum safety on die grinders and other high speed tools. Grade A60-TBF for smoother cut on ferrous metals. Always use approved machine guards/eye protection when cutting or grinding with cut-off wheels.

Detail Stones - Air Operated Lapping Machine

Detail Stones - Ceramic Diamond Stones (Flat)

Please select your desired size, grit, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.Diamond impregnated ceramic stones. Perfect for removing EDM scale when polishing steels of 45-65Hrc. The high performance is attained by the uniform impregnation of diamond particles across the length of the entire stone. May be used with profiler, ultrasonic systems or by hand.

Detail Stones - Ceramic Super Stones

Please select your desired size, grit, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.The original Ceramic Stone/Super Stone is used for fine detail polishing. Made from strands of fiber disbursed in a thermoset resin. This unique stone is extremely strong and thin. Its flexibility makes this stone excellent for tight ribs, slots and EDM removal. Can be used by hand, yet works extremely well in filing, lapping & ultrasonic machines.

Detail Stones - Fiber Stones

Please select your desired size, grit, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.The “CNB” family of stones is made from an advanced coated composite fiber. The CNB’s are extremely aggressive and are fabricated to provide incredible strength and cutting action. Great for EDM removal, welds and rapid stock removal. Cuts the hardest tool steels with its very coarse and fast cutting properties. The CNB-80 has cutting action similar to an 80grit and the CNB120 has cutting action similar to a 120grit.
