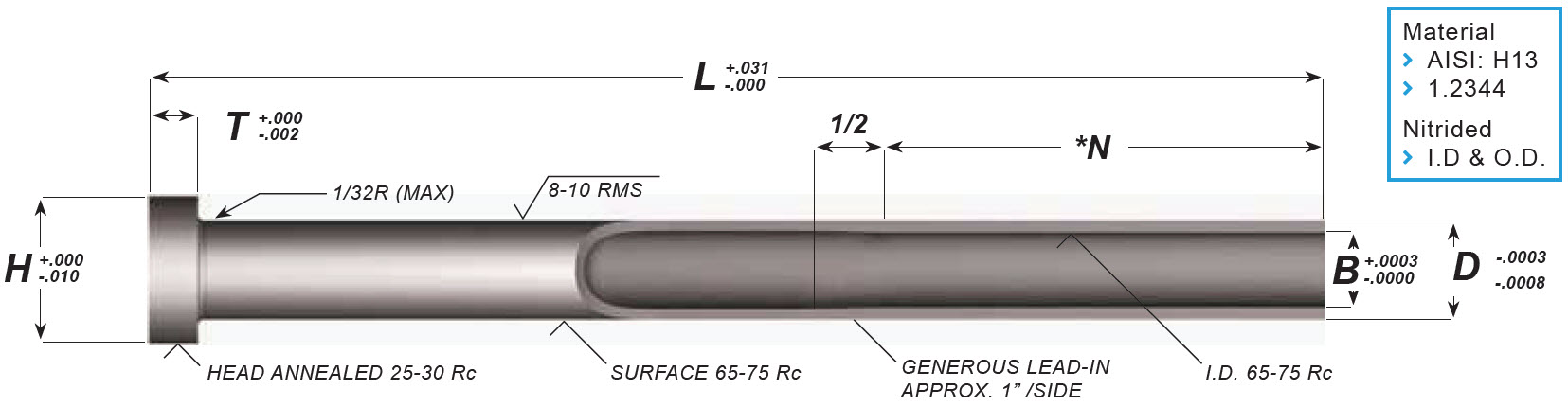

Please select your desired diameter, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.*(N) Measurements (3" to 14")SE02: *(N) = 1-3/4SE03: *(N) = 1-3/4SE04 and Larger: *(N) = 2-1/4*(N) Measurements (15" to 18")SE04: *(N) = 2-3/8SE05/SE55: *(N) = 2-3/4SE06 and Larger: *(N) = 3-1/4Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations. Need a Custom Parallel Ejector Sleeve? Please download the special drawings form below to complete your special drawings request. Upon completion, please fax, drop off, or attach the PDF to the contact form on this page.Ejector Sleeve Fillable PDF Download

Please select your desired diameter, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations. Need a Custom Parallel Ejector Sleeve? Please download the special drawings form below to complete your special drawings request. Upon completion, please fax, drop off, or attach the PDF to the contact form on this page.Ejector Sleeve Fillable PDF Download

Please select your desired diameter, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.**For the below variants, sizes are available but generally not stocked. OSE02L11, OSE02L12, OSE03L10, OSE03L11, OSE03L12 Need a Custom Parallel Ejector Sleeve? Please download the special drawings form below to complete your special drawings request. Upon completion, please fax, drop off, or attach the PDF to the contact form on this page.Ejector Sleeve Fillable PDF Download

Please select your desired diameter, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.Download Full PDF View CAD Library*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations. Need a Custom Parallel Ejector Sleeve? Please download the special drawings form below to complete your special drawings request. Upon completion, please fax, drop off, or attach the PDF to the contact form on this page.Ejector Sleeve Fillable PDF Download
