Carbide Burs - 1/4" Burs - 1/8 x 1-1/2" Long Steel Shank
Product number:
SA51-1
Product information "Carbide Burs - 1/4" Burs - 1/8 x 1-1/2" Long Steel Shank"

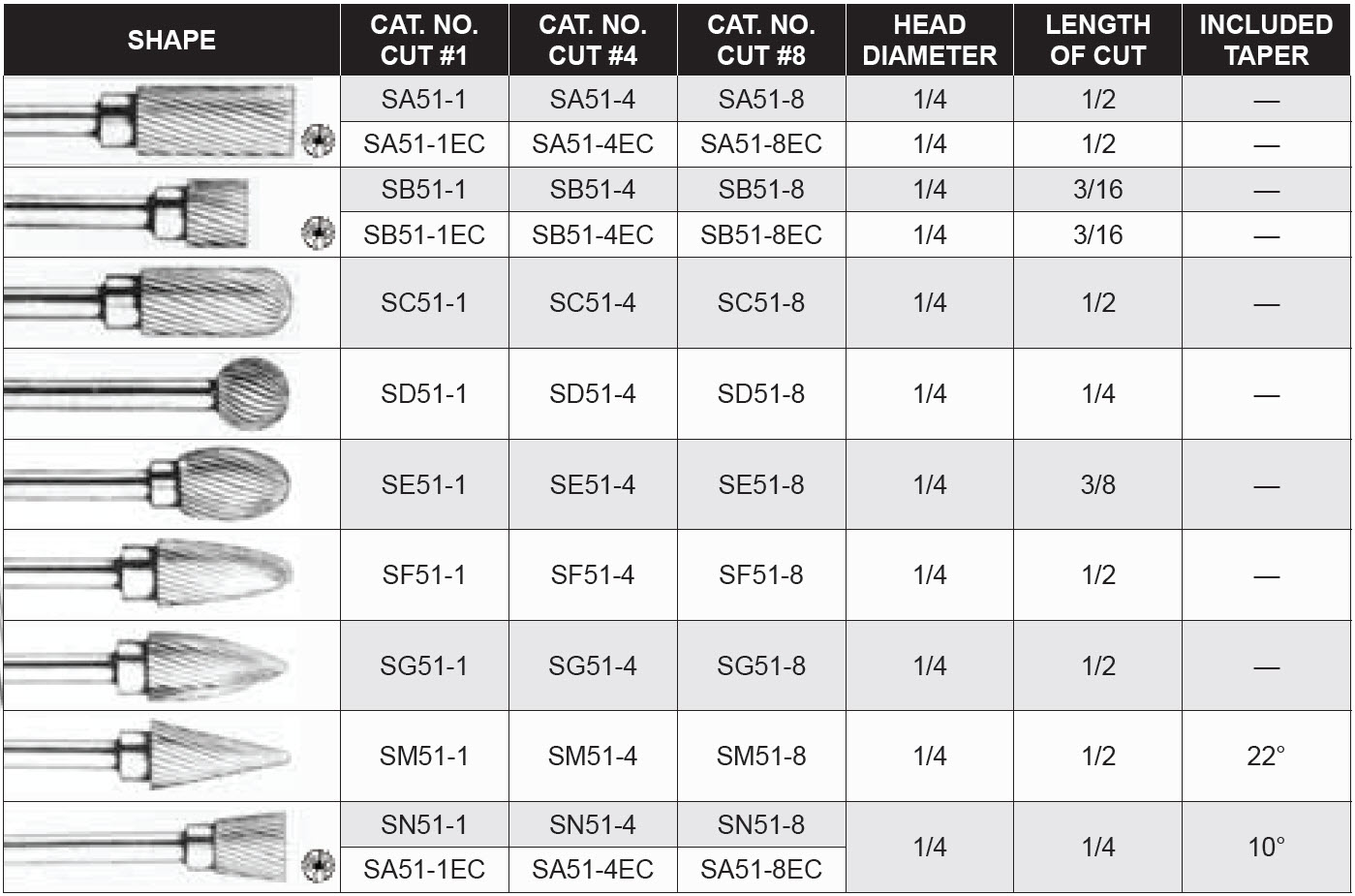

Please select your desired shape, diameter, and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.
CUT SELECTION
*1/8" x 1-1/2" Long Steel Shank. “EC” denotes end cutting bur
The cut or flute pattern is an
important decision when using
carbide burs. This is determined by
the hardness of the material being
removed and the finish required.
Below are illustrations of the basic
patterns that are available and the
advantages of each.
#1 Standard Cut
A general purpose pattern to
be used on cast iron, steel and
other ferrous metals.
#4 Double Cut
For use on heat treated and tough
alloy steel. Produces a smaller chip
and minimizes slivers in stringy
material. Enables excellent control.
#8 Chipbreaker Cut
This pattern reduces chip size
allowing an improvement in
control.
| Polishing: | Carbide Burs |
|---|
