Isobar Heat Pipes
Product number:
HP500x140
Product information "Isobar Heat Pipes"

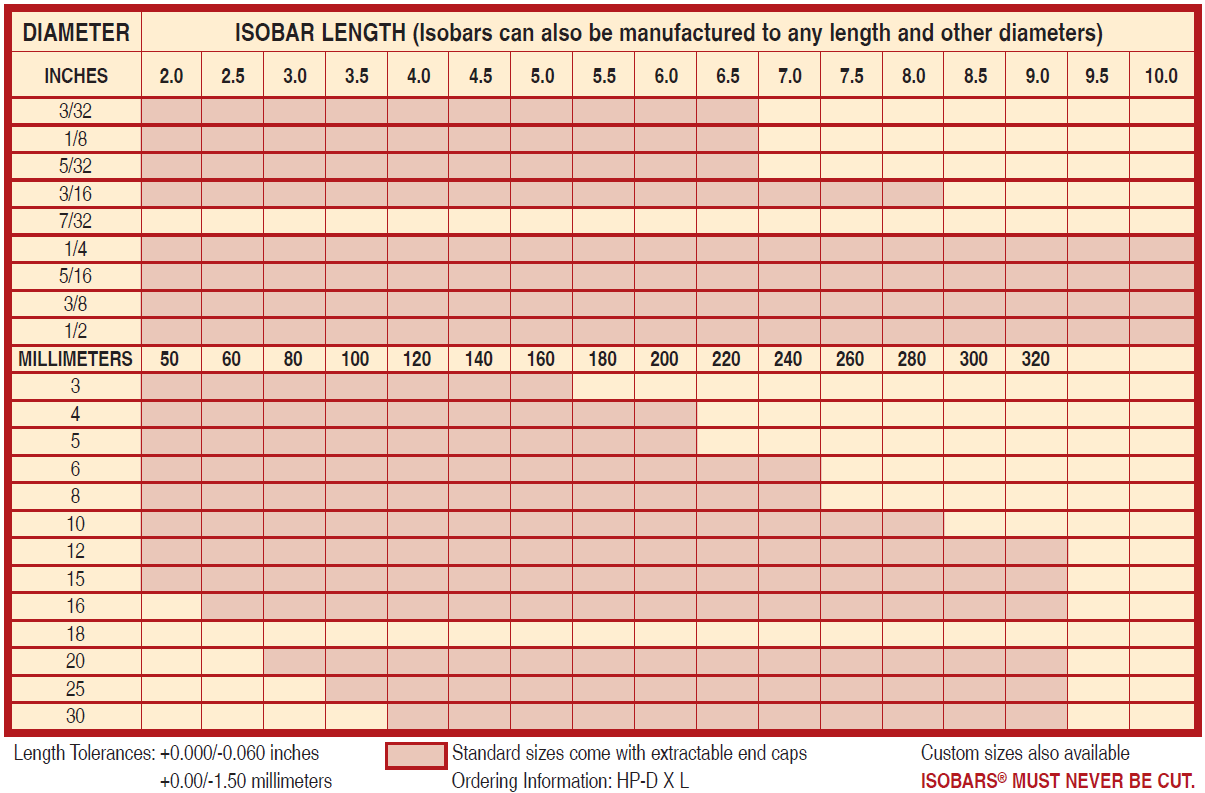

Please select your desired pipe size and length to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.
An Isobar® Heat Pipe is a super-thermal conductor that has the
capacity to transfer large amounts of heat at high speeds in both
heating and cooling applications. In fact, Isobar® Heat Pipes
have, in some applications and orientations, a thermal
conductivity in excess of 10,000 times the rate of a solid copper
bar of the same geometry. The working fluid constantly changes
phase due to the low vapor pressure inside the unit.
The resulting pressure difference moves the vapor from the
heated end to colder area where it condenses and releases the
heat energy uniformly. Isobars® are most successfully used
horizontally. Special designs for vertical use are available to order.
Isobars® are used instead of conventional water-cooling
methods. They can simplify tool design and are easy to fit.
They are designed to operate over the range of mold operating
temperatures between 35°F and 500°F. For relevant hole
dimensions, please see chart below.
Isobar® Heat Pipes can be designed or retrofitted into many
molding applications to improve efficiency related to cycle times,
cure rates, mold temperature uniformity, set-up times and recovery
rate. The cooled length should be a minimum of 50% of heated
length for maximum efficiency.
DMS can manufacture your core pin and have Isobars® charged
directly to the core pin.
| Heating & Cooling: | Isobars |
|---|
