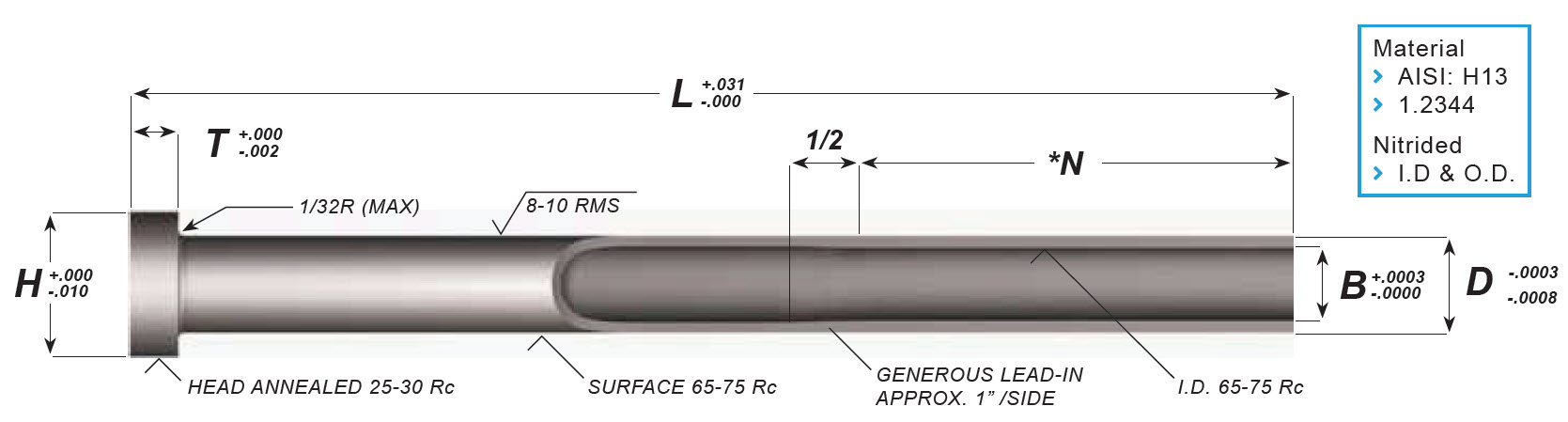

Ejector Sleeves Oversize Nitrided - Parallel Inch
Product number:
OSE02L04
Product information "Ejector Sleeves Oversize Nitrided - Parallel Inch"

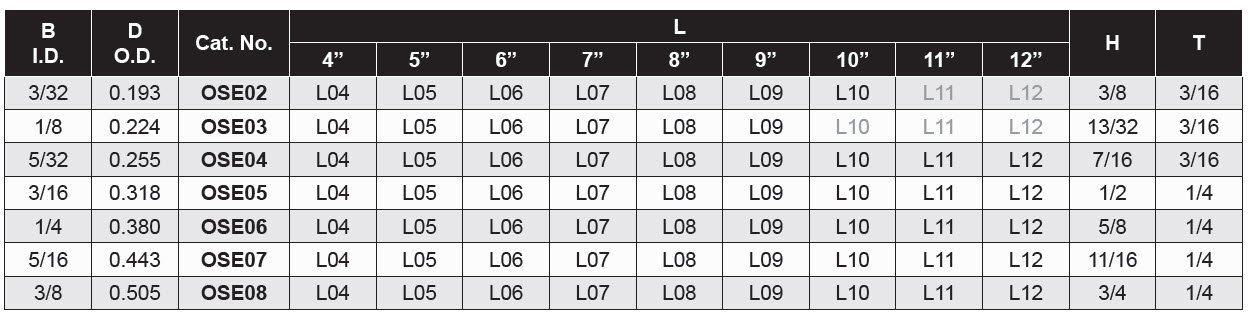

Please select your desired diameter, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.
*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.
**For the below variants, sizes are available but generally not stocked.
OSE02L11, OSE02L12, OSE03L10, OSE03L11, OSE03L12
OSE02L11, OSE02L12, OSE03L10, OSE03L11, OSE03L12
Need a Custom Parallel Ejector Sleeve?
Please download the special drawings form below to complete your special drawings request. Upon completion, please fax, drop off, or attach the PDF to the contact form on this page.
Ejector Sleeve Fillable PDF Download
| Head: | 25-30 Hrc |
|---|---|
| I.D.: | 65-75 Rc |
| Material: | AISL: H13 | 1.2344 |
| Nitrided: | I.D. & O.D. |
| Pins & Sleeves: | Ejector Sleeves |
| Surface: | 65-75 Rc |
