Core Pin Retainers

Product number: CPR131
Product information "Core Pin Retainers"

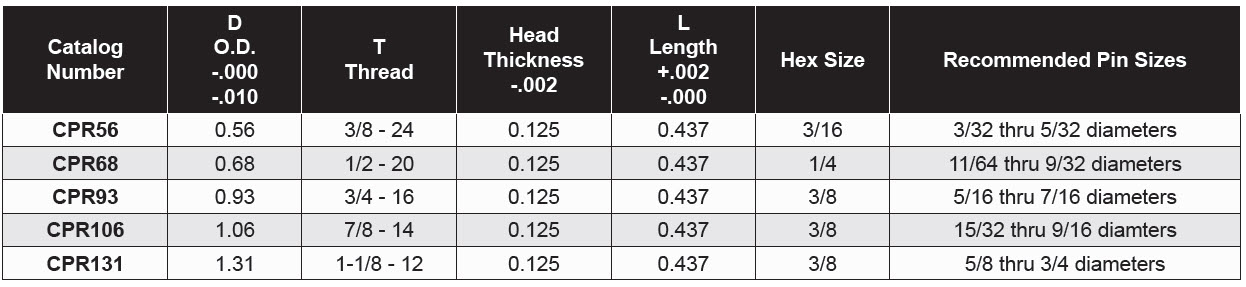

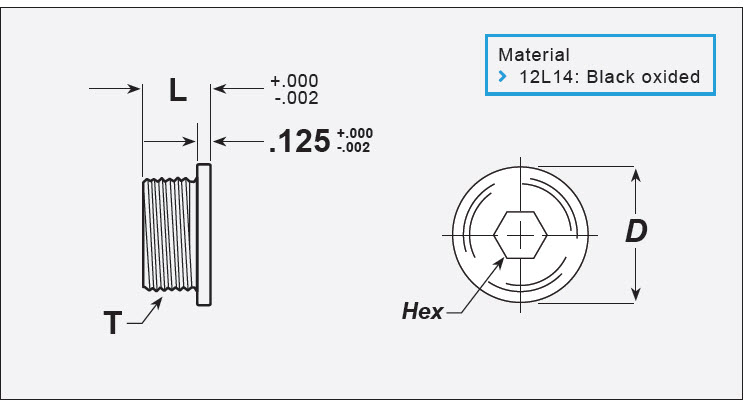

Please select your desired diameter, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.

*If measurements become greyed out, DMS Components does not produce the components in those measurement combinations.

  • Allows for improved and more consistent installation and removal of core pins by toolmaker
  • Does not force the head of the core pin head against the bottom of the counterbore B20
Material: 12L14: Black Oxided
Pins & Sleeves: Core Pin Retainers
