E Series Brass Baffles

Thread
Product number: EB100-48
Product information "E Series Brass Baffles"

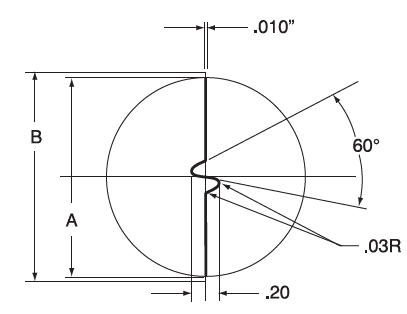

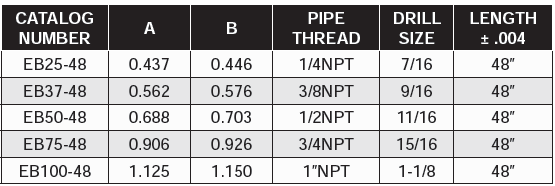

Please select your desired plug size, length, and variant to produce the catalogue number for your product. Please use the provided chart image to get full measurement breakdown for your selected catalogue number.

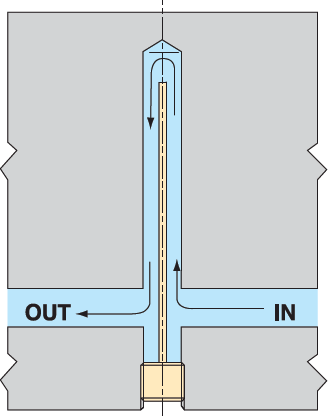

DMS “E-Series” brass baffles are an economical way to baffle longer water lines.
  • Will not twist in hole due to its configuration. Will not rotate out of its located position.
  • Recommended for use in Die Cast Dies where high temperatures are used.
  • Simply cut to the required length and insert slightly short of final depth.
These baffles will then be forced home by a pipe plug or block.
Heating & Cooling: Baffles
